So I’ve setup a MQTT broker and I’m feeding it temperature data. How do I actually make use of this data? Turns out collectd has an MQTT plugin, so I went about setting it up to record temperature over time.

First problem was that although the plugin supports MQTT/TLS it doesn’t support it for subscriptions until 5.8, so I had to backport the fix to the 5.7.1 packages my main collectd host is running.

The other problem is that collectd is picky about the format it accepts for incoming data. The topic name should be of the format <host>/<plugin>-<plugin_instance>/<type>-<type_instance> and the data is <unixtime>:<value>. I modified my MQTT temperature reporter to publish to collectd/mqtt-host/mqtt/temperature-study, changed the publish line to include the timestamp:

publish.single(pub_topic, str(time.time()) + ':' + str(temp),
            hostname=Broker, port=8883,
            auth=auth, tls={})

and added a new collectd user to the Mosquitto configuration:

mosquitto_passwd -b /etc/mosquitto/mosquitto.users collectd collectdpass

And granted it read-only access to the collectd/ prefix via /etc/mosquitto/mosquitto.acl:

user collectd
topic read collectd/#

(I also created an mqtt-temp user with write access to that prefix for the Python script to connect to.)

Then, on the collectd host, I created /etc/collectd/collectd.conf.d/mqtt.conf containing:

LoadPlugin mqtt

<Plugin "mqtt">
        <Subscribe "ha">
                Host "mqtt-host"
                Port "8883"
                User "collectd"
                Password "collectdpass"
                CACert "/etc/ssl/certs/ca-certificates.crt"
                Topic "collectd/#"
        </Subscribe>
</Plugin>

I had some initial problems when I tried setting CACert to the Let’s Encrypt certificate; it actually wants to point to the “DST Root CA X3” certificate that signs that. Or using the full set of installed root certificates as I’ve done works too. Of course the errors you get back are just of the form:

collectd[8853]: mqtt plugin: mosquitto_loop failed: A TLS error occurred.

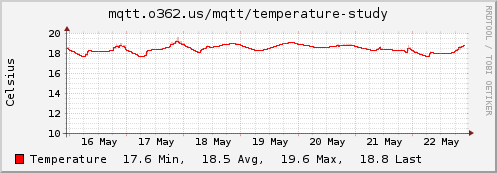

which is far from helpful. Once that was sorted collectd started happily receiving data via MQTT and producing graphs for me:

Study temperature

This is a pretty long winded way of ending up with some temperature graphs - I could have just graphed the temperature sensor using collectd on the Pi to send it to the monitoring host, but it has allowed a simple MQTT broker, publisher + subscriber setup with TLS and authentication to be constructed and confirmed as working.
